Lesson 01: What is DaisyKit?

DaisyKit is an open-source AI toolkit that lets you deploy computer vision models in real-time with just a few lines of Python. It wraps powerful models — face detection, human pose, background matting, object detection, and more — behind a simple, consistent API so you can focus on your application instead of model internals.

DaisyKit demo: face detection, pose estimation, background matting, and object detection

Why DaisyKit?

The typical AI deployment journey looks like this:

Find a pre-trained model and figure out its input format
Write preprocessing code (resize, normalize, convert color)
Run inference with TensorFlow, PyTorch, or ONNX Runtime
Write postprocessing code (decode predictions, draw boxes)
Handle edge cases, optimize for speed, repeat for every model

DaisyKit collapses this into two steps: configure and run.

import daisykit, json
from daisykit.utils import get_asset_file

config = {
    "face_detection_model": {
        "model": get_asset_file("models/face_detection/..."),
        ...
    }
}
flow = daisykit.FaceDetectorFlow(json.dumps(config))
faces = flow.Process(frame)        # <- one call for full inference
flow.DrawResult(frame, faces)      # <- one call to visualize

Where DaisyKit Fits

Framework	Focus	Ease of Use	Custom Models	Multi-platform
MediaPipe	Google-curated pipelines	High	Limited	Yes
OpenCV DNN	Inference only (no pipelines)	Medium	Yes	Yes
TensorFlow Lite	Inference + training	Low	Yes	Yes
DaisyKit	Ready-to-run AI flows	Highest	Yes (NCNN)	Yes

DaisyKit is inspired by MediaPipe's graph architecture but uses NCNN as its inference engine — a lightweight, dependency-free C++ framework that runs on CPU with high efficiency on phones, embedded boards, and laptops.

Graph-Based Pipeline Architecture

DaisyKit organizes AI tasks as directed graphs of processing nodes. Each node does one thing (capture frames, detect faces, regress landmarks, draw results) and passes data to the next node through a transmission queue.

Node connection: FaceDetector feeds into LandmarkDetector, both feed into Visualizer

This design has two key benefits:

Concurrency — nodes run on separate threads, so one node processes frame N while the next is still working on frame N-1. This maximizes throughput.
Composability — you can swap individual nodes (e.g., replace the face detector with a custom model) without changing the rest of the pipeline.

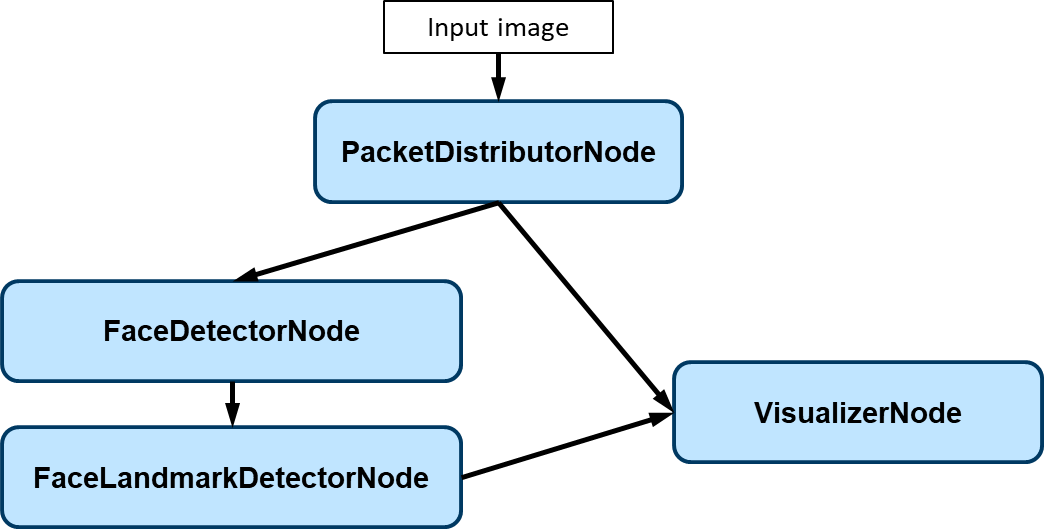

Face detection graph: distributor → face detector → landmark detector → visualizer

Supported Flows (Python API)

Flow	Class	Models Used
Face detection + landmarks	`FaceDetectorFlow`	YOLO Fastest + PFLD
Human pose	`HumanPoseMoveNetFlow`	SSD-MobileNetV2 + MoveNet
Background matting	`BackgroundMattingFlow`	ERD portrait segmentation
Hand pose	`HandPoseDetectorFlow`	YOLOX hand + Google hand pose
Object detection	`ObjectDetectorFlow`	YOLOX (COCO 80 classes)
Barcode / QR scanning	`BarcodeScannerFlow`	ZXing-CPP (no deep learning)

Multi-Platform Support

DaisyKit is built on a C++ core that compiles for multiple targets:

Python — the primary interface for this course (pip install)
C++ — direct SDK for high-performance systems
Android — prebuilt AAR with all six demo flows
iOS — SwiftUI example app

The model weights are platform-agnostic NCNN .param / .bin files, so the same weights run everywhere.

Development Plan

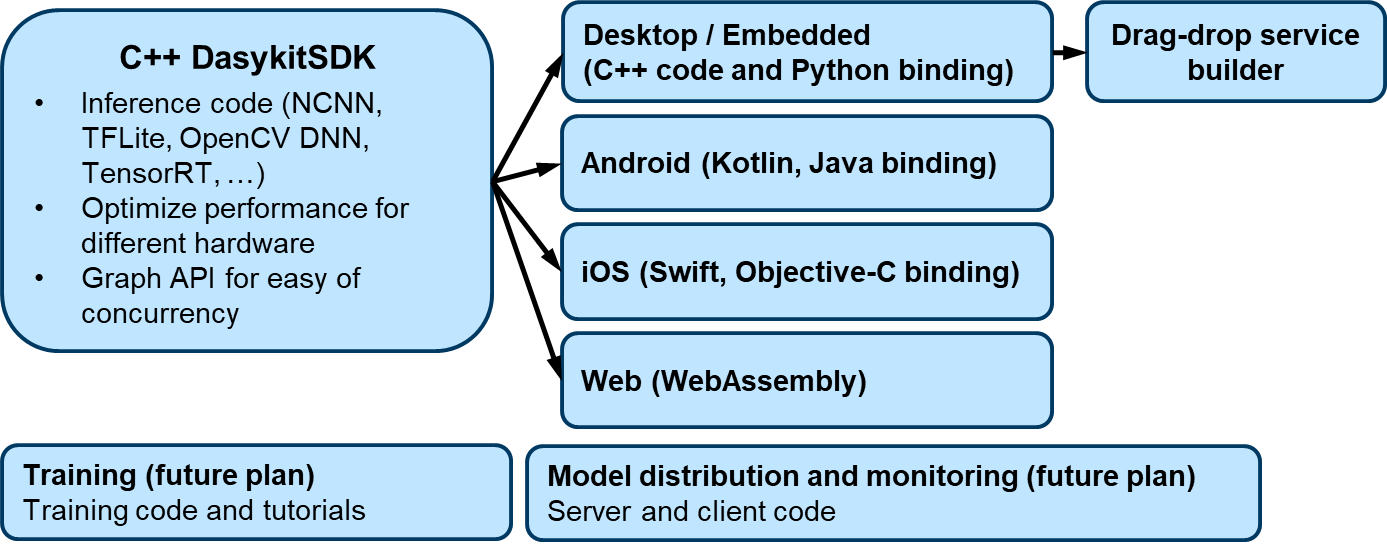

DaisyKit development roadmap

The roadmap covers:

Phase 1 (current): Inference flows + Python/C++/Android/iOS wrappers
Phase 2: Training code and tutorials for custom models
Phase 3: Model distribution hub and monitoring

Key Takeaways

DaisyKit is a pipeline framework, not just an inference wrapper — models are nodes in a graph that run concurrently for maximum throughput.
The Python API follows a consistent pattern: configure → Process() → DrawResult().
Model weights are auto-downloaded from the asset registry on first use.
The same flows run on desktop, Android, and iOS with no code changes.

In the next lesson, you will install DaisyKit and run your first AI flow.
